显微镜用相机-sCMOS，EMCCD和CCD

从极具挑战性的单分子追踪到日常的活细胞或固定细胞的宽场荧光图像，您都能在Andor显微产品系列中找到一款适合您应用的高性能相机。

Andor的扩展产品系列拥有杰出的成像性能且易于使用的特点，让客户能够在显微世界看的更多更快，推动科学前沿向前发展。

询价 询问 产品选择工具

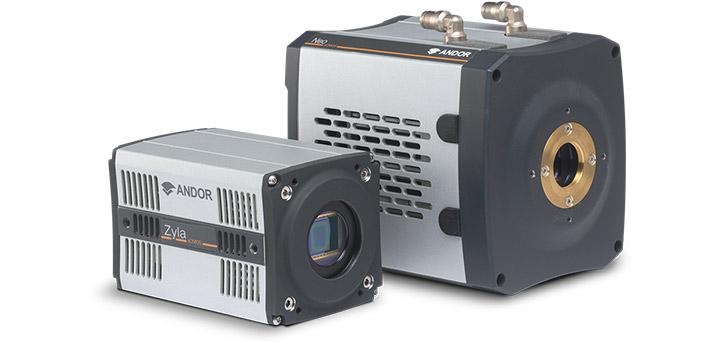

sCMOS显微相机

用Andor的sCMOS相机一劳永逸地提升您的荧光显微镜的性能。我们百万级像素的sCMOS相机产品系列提供您高帧率下的大视场高分辨图像，同时又不牺牲噪声水平和动态范围，真正重新定义了“劳模”相机的概念。

  • 大视野，高像元数，高空间分辨率
  • 高达95%量子效率，低噪声
  • 高帧率，全画幅可达100幅/秒
  • 全局和卷帘快门
  • SRRF-Stream+实时超分辨选项
询价 了解更多
Dr. Kurt Thorn

The Andor Zyla (sCMOS) provides an impressive combination of field-of-view, sensitivity, resolution and speed.

Dr Kurt Thorn, UCSF, California.

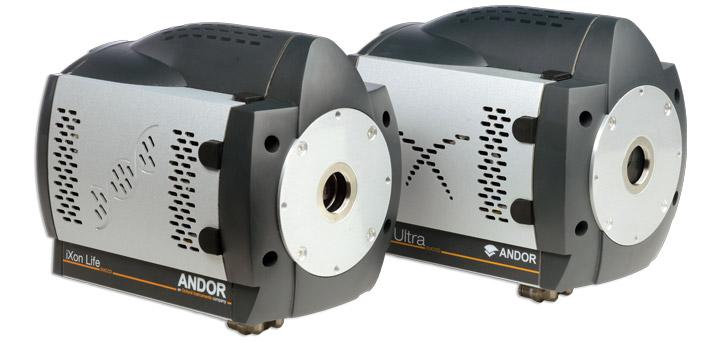

EMCCD显微相机

我们市场领先的EMCCD相机系列享有高速情况下超高灵敏度的美誉。所有背照式的型号均拥有单光子探测器灵敏度以及>95%的量子效率。iXon平台是极弱光显微应用的最佳选择，我们的“897”型EMCCD自豪地拥有全球最高的实验室占有率。

  • 背照式芯片，>95%量子效率​
  • 热电制冷至-100°C
  • SRRF-Stream+实时超分辨选项可选
  • 高帧率，全画幅>56幅/秒
  • 专利UltraVac ™真空封装技术
询价 了解更多

The iXon (EMCCD) range of cameras have been incredibly reliable in our lab and have facilitated rapid, low noise imaging at relatively low laser intensities.

Prof. Mark Hollywood, Dundalk Institute of Technology, Ireland.

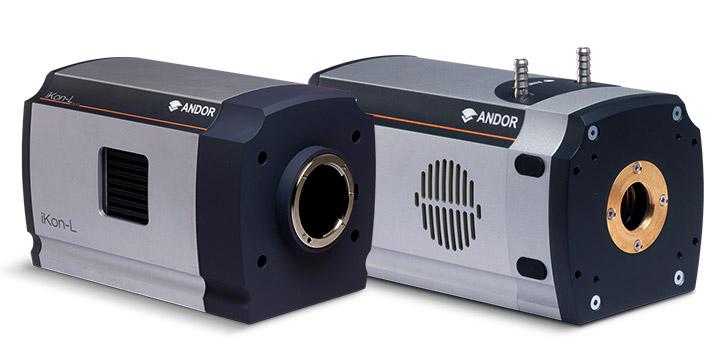

深制冷通用CCD显微相机

Andor的iKon-M 934 CCD相机通过卓越的真空制冷技术使其具备超低暗噪声，iKon系列相机是为了在长曝光时间下获得最佳灵敏度而设计的，因此它们是长时间弱光成像的理想选择

  • 大视野
  • 最高可达1680万像元数
  • 热电制冷技术，可低至-100°C
  • 背照式芯片，>95%量子效率
  • 专利UltraVac ™真空封装技术，几乎无需维护
询价 了解更多

The iKon CCD camera helps us obtain data more accurately and more conveniently. We can also do other important scientific research using protein interaction based BiFC and BiLC methods.

Libang Ma, Shanghai Institutes for Biological Sciences, China.

Microscope Camera Selection Tool

Try our camera microscope selector tool to select and compare products by application or technology. If you want to discuss the specific needs of your imaging experiments, you can contact one of our Andor Specialists.

iXon Life 888
iXon Life 897
Sona-11 (32 mm)
Sona-11 (22 mm)
Neo 5.5
ZL41 Cell 5.5
ZL41 Cell 4.2
iKon-M 934
Sona-6

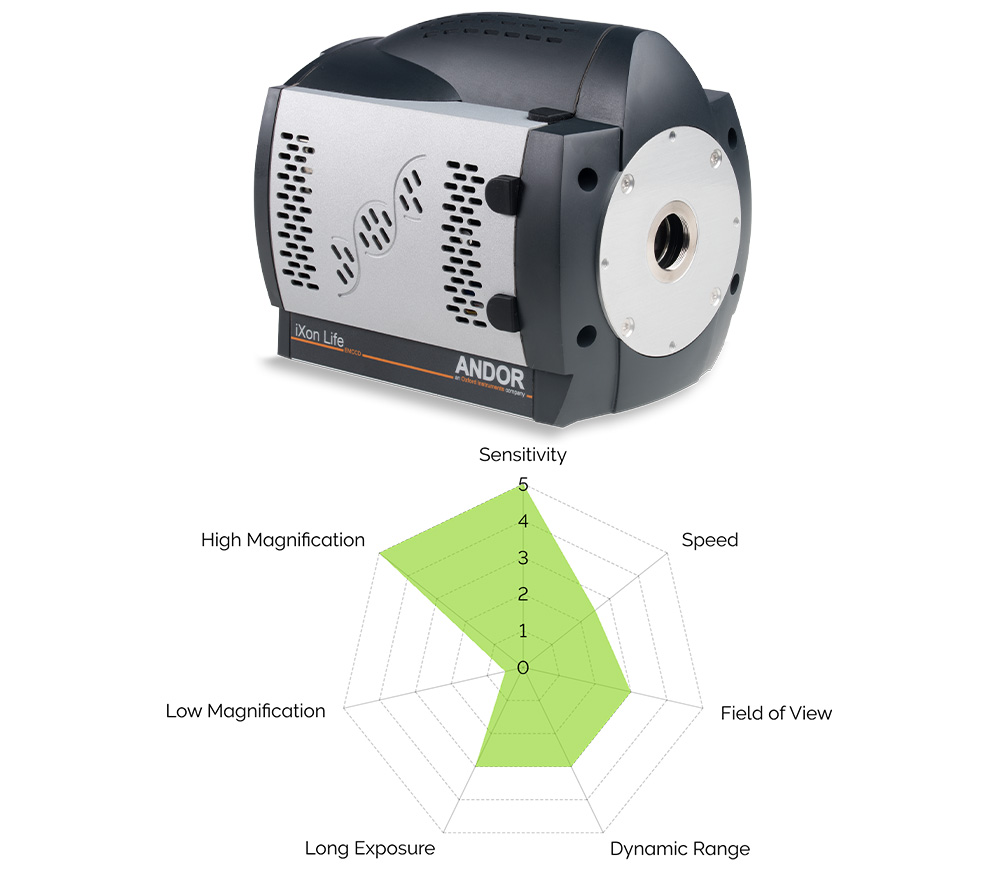

iXon Life 888 EMCCD

The world’s fastest megapixel back-illuminated EMCCD

iXon Life 888
Resolution (MP) - 1.0
Pixel Size (µm) - 13
Max. Frame Rate (fps) - 26
Cooling (°C) - -80
Max QE (%) - 97
Read Noise (e-) - <1
Request Pricing Specifications

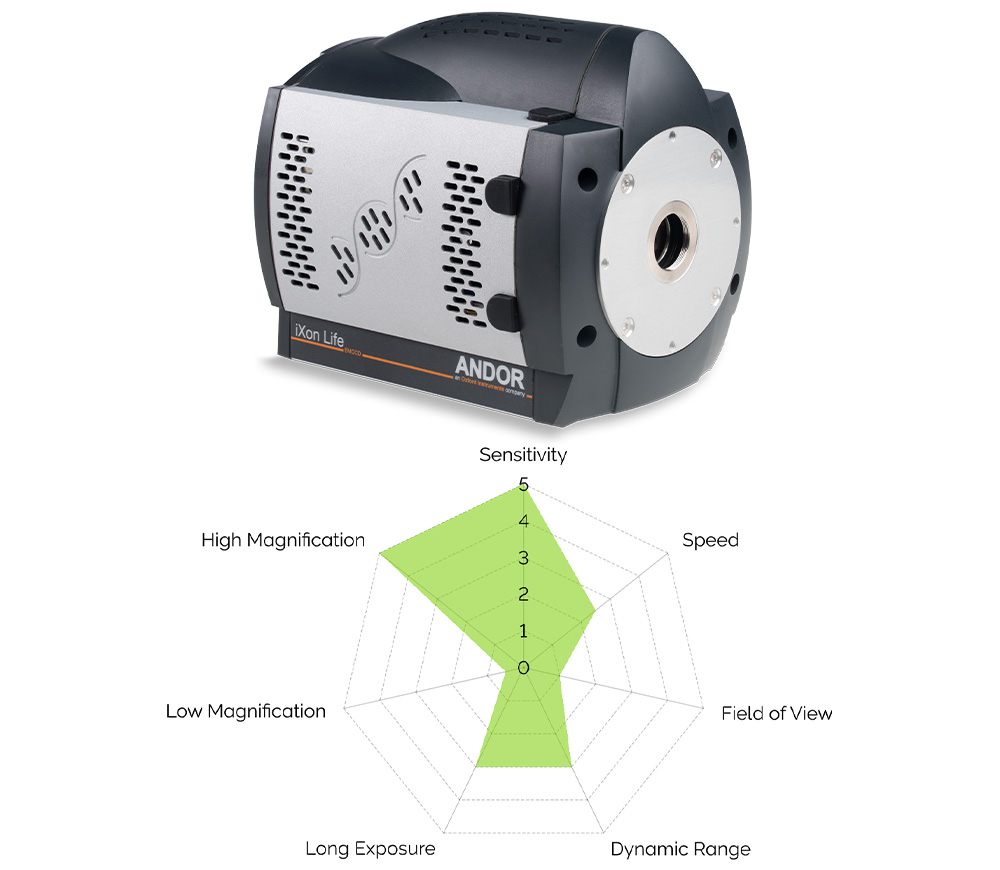

iXon Life 897 EMCCD

The world’s widest installed EMCCD - by far!

iXon Life 897
Resolution (MP) - .25
Pixel Size (µm) - 16
Max. Frame Rate (fps) - 56
Cooling (°C) - -80
Max QE (%) - 97
Read Noise (e-) - <1
Request Pricing Specifications

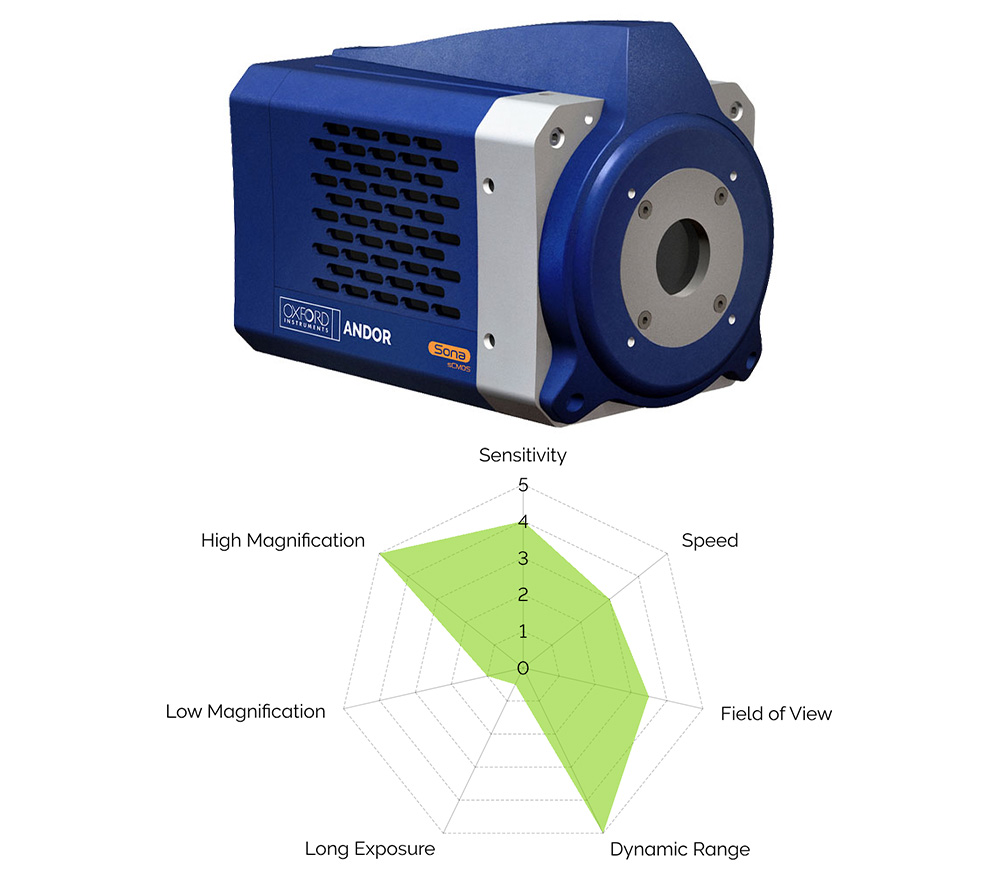

Sona-11 (22 mm)

World's Most Sensitive Back-illuminated sCMOS Camera

Sona 2.0 sCMOS
Resolution (MP) - 2.0
Pixel Size (µm) - 11
Max. Frame Rate (fps) - 70
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.6
Request Pricing Specifications

Sona-11 (32 mm)

World's Most Sensitive Back-illuminated sCMOS Camera

Sona 4.2 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 11
Max. Frame Rate (fps) - 48
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.6
Request Pricing Specifications

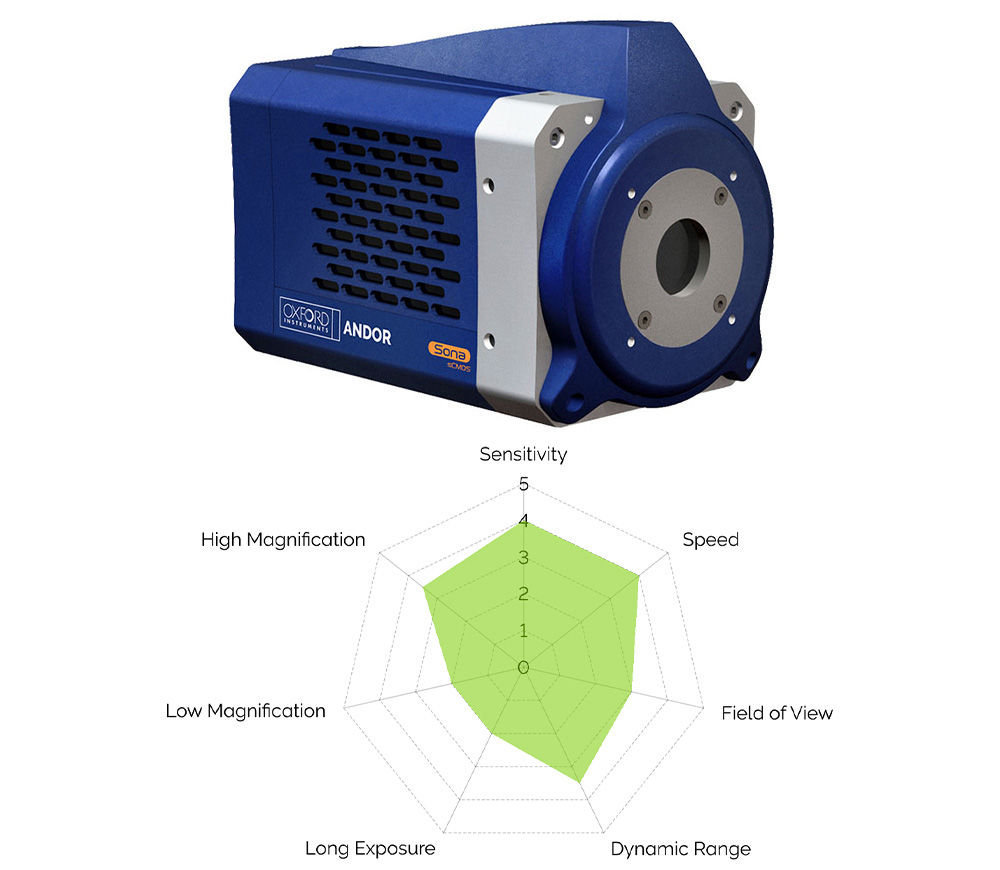

Sona-6

World's Most Sensitive Back-illuminated sCMOS Camera

Sona-6 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 135
Cooling (°C) - -45
Max QE (%) - 95
Read Noise (e-) - 1.0
Request Pricing Specifications

Neo 5.5 sCMOS Camera

Deep vacuum cooled and true Global shutter

Neo 5.5 sCMOS
Resolution (MP) - 5.5
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 30
Cooling (°C) - -40
Max QE (%) - 60
Read Noise (e-) - 1
Request Pricing Specifications

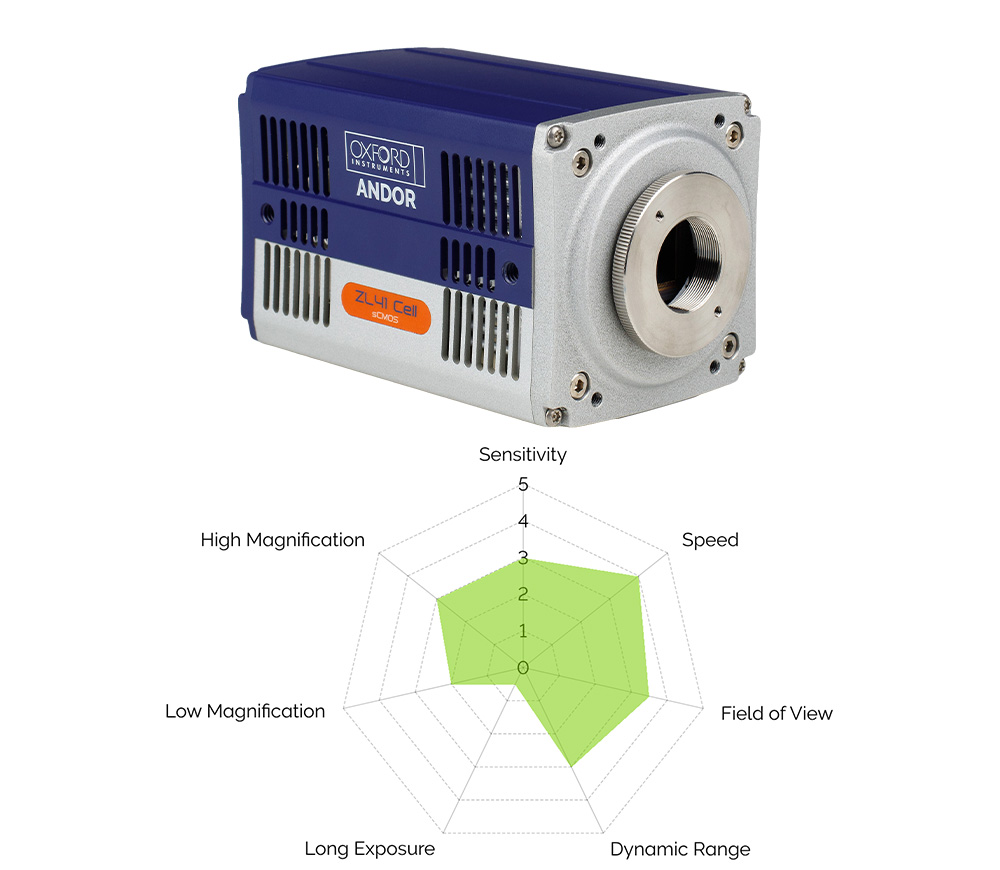

ZL41 Cell 5.5

Perfect upgrade - Rolling & true Global shutter

Zyla 5.5 sCMOS
Resolution (MP) - 5.5
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 100
Cooling (°C) - 0
Max QE (%) - 64
Read Noise (e-) - 0.9
Request Pricing Specifications

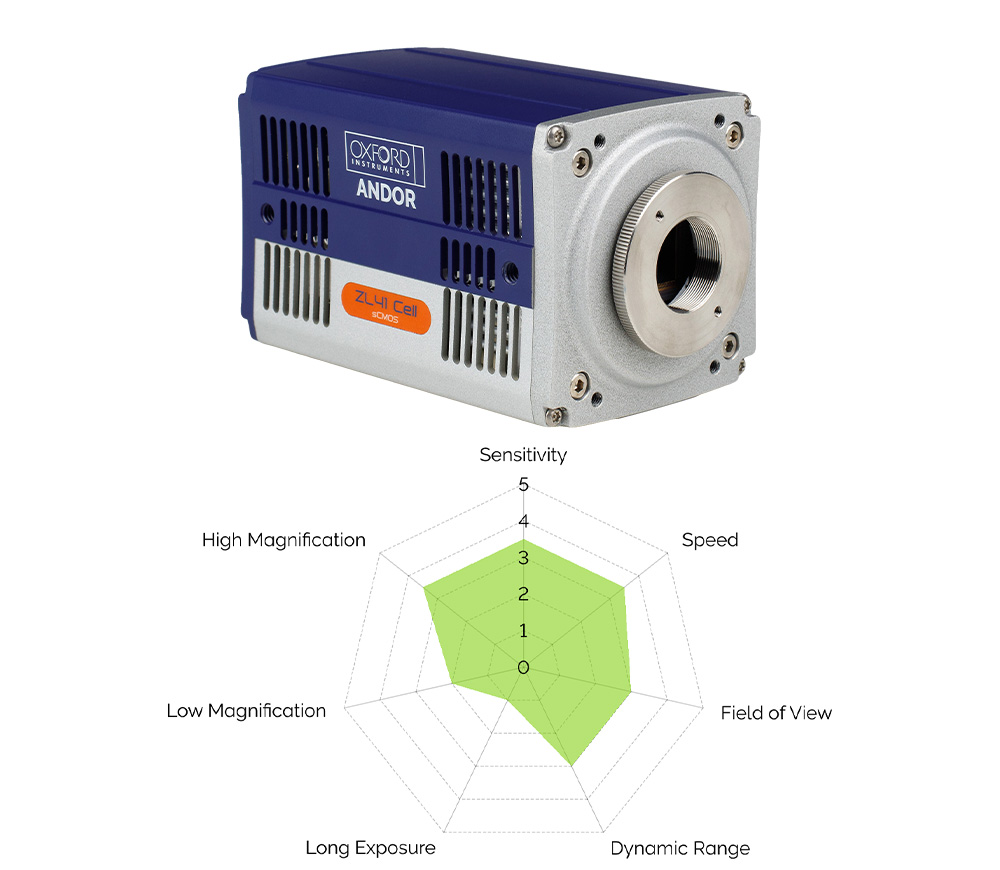

ZL41 Cell 4.2

Our most flexible and feature packed performance sCMOS

Zyla 4.2 sCMOS
Resolution (MP) - 4.2
Pixel Size (µm) - 6.5
Max. Frame Rate (fps) - 100
Cooling (°C) - 0
Max QE (%) - 82
Read Noise (e-) - 0.9
Request Pricing Specifications

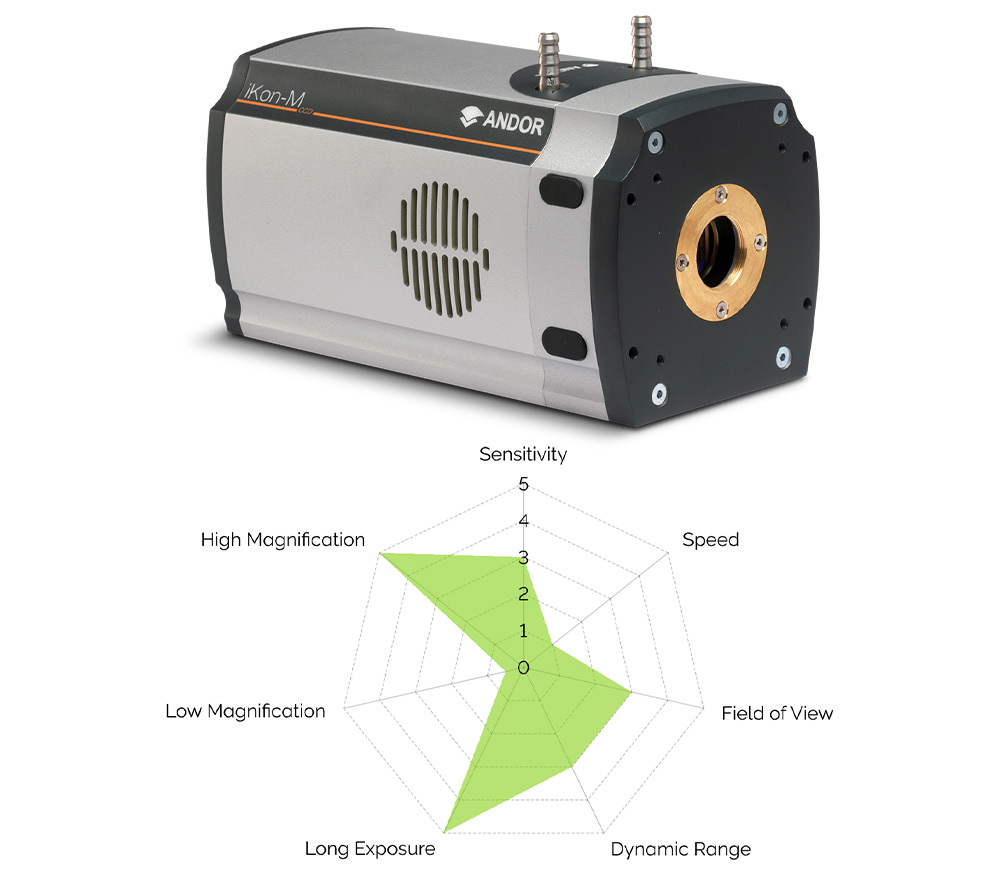

iKon-M 934 CCD Camera

The ultimate detector for low light luminescence

iKon-M 934
Resolution (MP) - 1.0
Pixel Size (µm) - 13
Max. Frame Rate (fps) - 4.4
Cooling (°C) - -100
Max QE (%) - 97
Read Noise (e-) - 2.9
Request Pricing Specifications
